Standard Duty Metallic Pumps are ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.

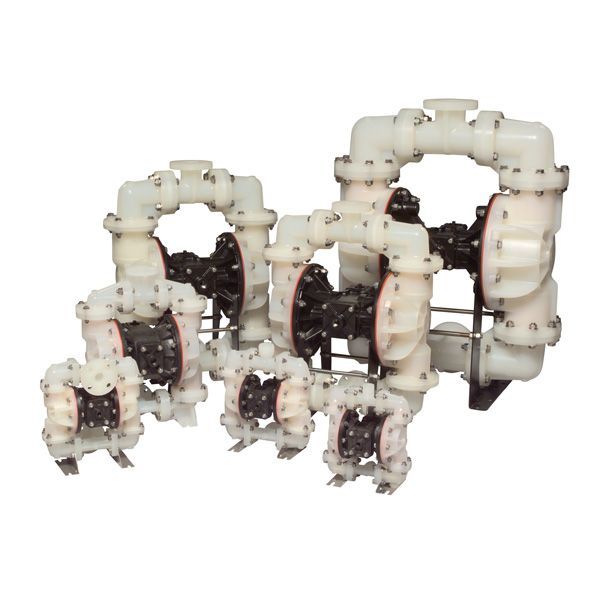

Plastic Ball Valve Pumps
Sandpiper : Plastic Ball Valve Series
Fully-bolted non-metallic pump suitable for aggressive and hazardous chemicals.
Fully-bolted non-metallic pump suitable for aggressive and hazardous chemicals. Bolted design in Polypropylene or PVDF prevents leakage to atmosphere.
Performance Criteria:
- Capacity: To 901 l/min
- Pressure: To 7.0 bar
- Temperature: To 100°C
- Viscosities: To 25,000 cps
- Sizes: ¼” to 3”
Features:
- Externally serviceable air valvue design (ESADS)
- Fully bolted design, no clamp bands
- Non lube, non-stall air valve design GUARANTEED
- 5 Year Warranty (wearing parts excluded)
Model, Size & Performance:
- WR10
- Size: 3/8″
- Capacity: To 19 l/min
- Pressure: To 6.9 bar
- PB¼
- Size: ¼”
- Capacity: To 15 l/min
- Pressure: To 8.6 bar
- S05
- Size: ½”
- Capacity: To 52 l/min
- Pressure: To 7.0 bar
- S07
- Size: ¾”
- Capacity: To 87 l/min
- Pressure: To 7.0 bar
- S10
- Size: 1″
- Capacity: To 87 l/min
- Pressure: To 7.0 bar
- S1F
- Size: 1″
- Capacity: To 170 l/min
- Pressure: To 7.0 bar
- S15
- Size: 1½”
- Capacity: To 378 l/min
- Pressure: To 7.0 bar
- S20
- Size: 2″
- Capacity: To 605 l/min
- Pressure: To 7.0 bar
- S30
- Size: 3″
- Capacity: To 901 l/min
- Pressure: To 7.0 bar
