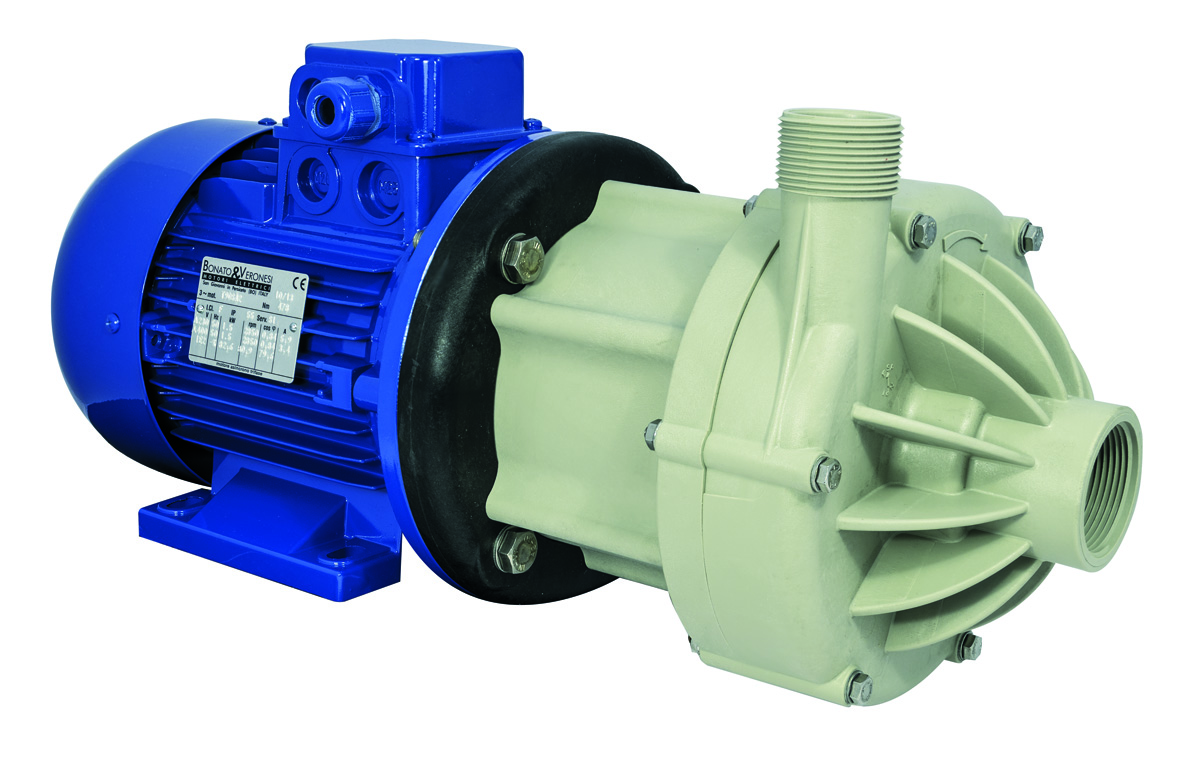

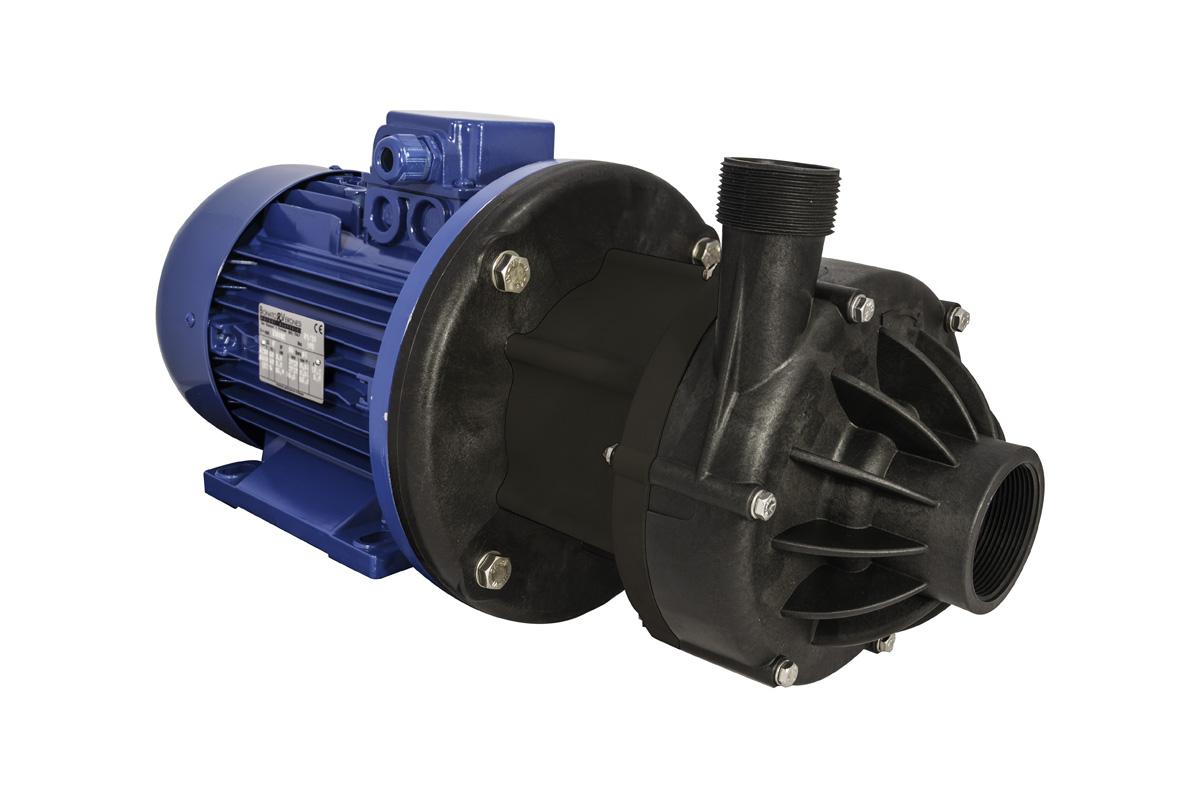

Magnetic Drive Centrifugal Pumps

    AVAILABLE IN POLYPROPYLENE, PVDF;

    – POSITIVE SUCTION HEAD OPERATION;

    – WELDLESS;

    – HIGH FLOW RATES: FROM 5 TO 35 M3/H ;

    – QUICK AND EASY MAINTENANCE;

    – INEXPENSIVE SPARES;

    – THERE IS NO POSSIBILITY OF FLUID LEAKAGE;

    – HEAD: UP TO 24 MT;

    – VISCOSITY: UP TO 150 CPS;



    -MOTORS:

    STANDARD IEC – IP 55 – CLASS F – 2 POLE – 2.900RPM

    OPTIONAL: THREE PHASE 230/400V 50/60 HZ

    SINGLE PHASE 230V 50/60 HZ

    WORKING TEMPERATURES:

    PP min +3°C/max +65°C

    PVDF min +3°C/max +95°C

    A couple of magnets leads the operation of the pump; the outer magnet placed on the drive shaft transmits the motion to the inner magnet integrated with the impeller that is hermetically insulated. The pump impeller is not physically fixed to the drive shaft, seals are therefore eliminated and this consequently avoids leakages of the liquid drawn by the pump which are usually due to its wear and tear. The pump head is manufactured with few components, thus the maintenance of which becomes extremely easy. The materials used as standard are polypropylene (pp) and polyvinylidene fluoride (pvdf).
